All Attachments included: bucket, grapple, 6 way blade
This machine is top of the line with all the delux options. High-Flow, brush package and AC.
Call for any questions.

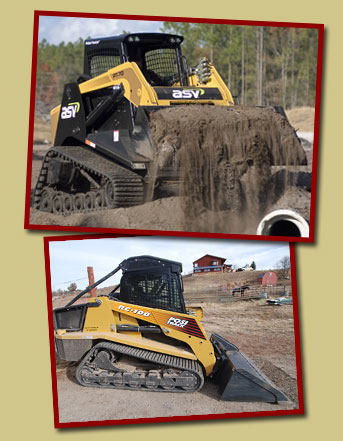

The RC-100 is ASV's flagship Compact Track Loader. It was designed from the ground up to take full advantage of its suspended rubber track undercarriage — without compromises. It is the most powerful and productive of the ASV R-Series product line.
High Power, High Torque Powertrain
The RC-100 is powered by the Perkins 1104C-44T turbocharged diesel engine. It is a 4.4 liter 4-cylinder diesel engine that offers high output with low emissions and low sound. In fact, with 304 ft-lb of torque, ASV's RC-100 has more available torque than any other rubber tracked loader.
The Posi-Power Control™ (PPC™) system is an integral part of the RC-100's powertrain. PPC™ is a power management system that lets you work the RC-100 to its fullest potential as it automatically shifts the hydrostat to match available engine horsepower. With the PPC system, it is virtually impossible to stall the engine.
RC-100 Machine Specifications and Dimensions
General dimensions
A - Height to top of ROPS/FOPS: 80 in (2023 mm)
B - Ground clearance: 14 in (356 mm)
C - Max. lift height, at hinge pin: 125 in (3175 mm)
E - Length of undercarriage: 90 in (2293 mm)
F - Machine length, w/o bucket: 117.5 in (2985 mm)
G - Machine length, with bucket: 148 in (3760 mm)
H - Machine width: 69 in (1753 mm)
Track Specifications
F -Track width: 18 in (457 mm)
D -Track length (on ground): 72.5 in (1842 mm)
Machine Weight
Operating weight : 10,150 lb (4604 kg)
Shipping weight, without bucket: 9,200 lb (4173 kg)
Ground pressure: 3.5 psi (24 kPa)
Ground contact area: 2,610 in2 (1.68 m2)
